Water control valves

TOPProduct informationWater control valves 〉Mixing valve

Mixing valve

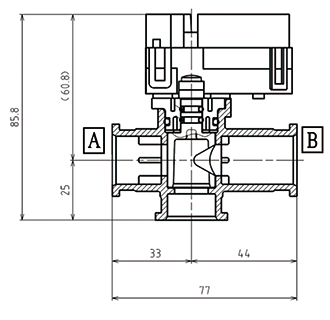

9

measurements

Spec.

Fluid used Water
Temp. range (Fluid) 0~90℃ (Unfreeze)
Temp. range (Ambient) -20~70℃ (Unfreeze)
Max. pressure 7.5bar
Rated voltage Motor circuit: DC12V±15%
Hall IC: DC5~18V
Rotation range 0°⇔180°
Min. valve leakage 2L/min. or less (at 100kPa)
I. D. of joint φ20

Material

Body PPS
Rotary valve PPS
Mounting plate Galvanized steel sheet
